ECS Applications

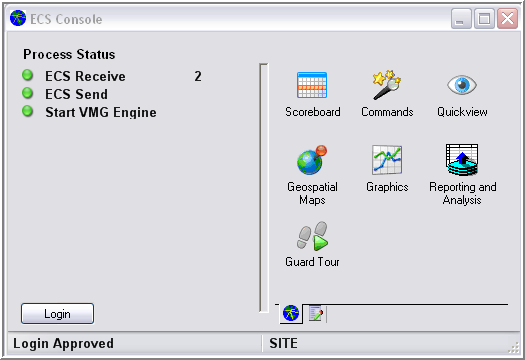

Available ECS APPLICATIONS are shown on the ECS Console

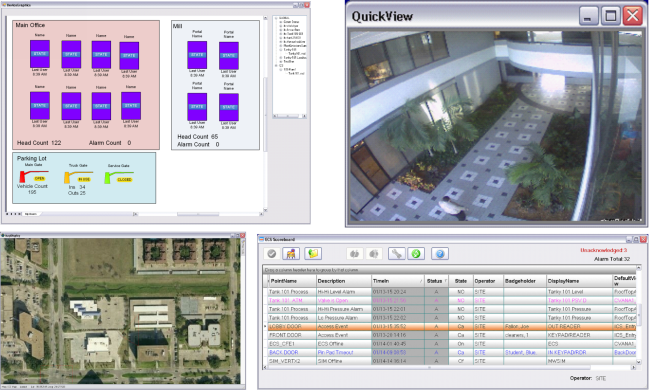

ECS station monitors may be configured to show several of these applications at the same type for customized system operation.  Shown below are a GRAPHICS window, a MAPS window, a QUICKVIEW window, and a SCOREBOARD window.  Each window is a separate application.

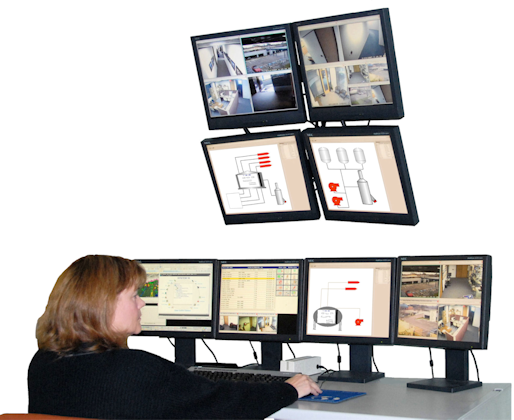

Below is an example of these windows displayed on monitors at an ECS station.
