Select View

Views may be presented Alphabetically, by Facility, or by Group

Right-mouse-clicking in the body of the QuickView window (not in the window title area) and selecting 'Select View' will bring up a list of views for operator selection. Clicking in the top blue bar will allow you to drag the window to the side so the monitor window may still be seen.  Informational data defined for the view will also be presented to the operator.  DOUBLE-CLICK on any view you wish to see and the view will be displayed in the window.

 NOTE: The list of views presented will be the entire list available to the operator.  Note that the operator does not need to be aware what NVR on which the view is located nor does the operator need to know what brand of NVR from which the view is being displayed.

   NOTE: The list of views presented to an operator at an ECS station is limited to the intersection of the codes in the Reception List of the operator and the Reception List of the ECS Station.

Select View Alphabetically

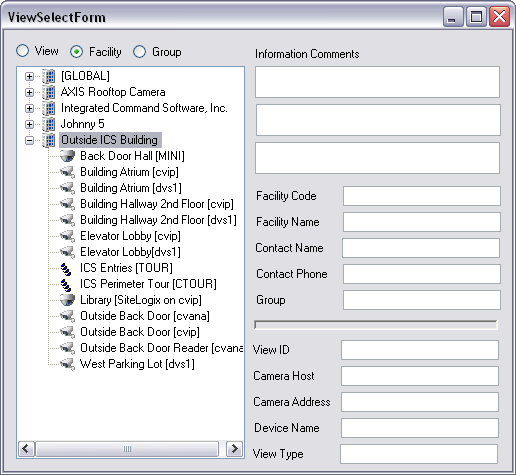

 Select View by Facility

• Click the 'Facility' radio button.  A facility tree structure will appear.
• Expand the Facility tree for the facility where you want to see a view by clicking on the '+' for that facility.
• 'GLOBAL' is a default facility that contains any views not assigned to a particular facility.
• DOUBLE-CLICK on the view name you wish to see to display the view.
• The 'Select View' window may then be closed or left open depending on your viewing needs.  If left open, you can select a different view simply by double-clicking again

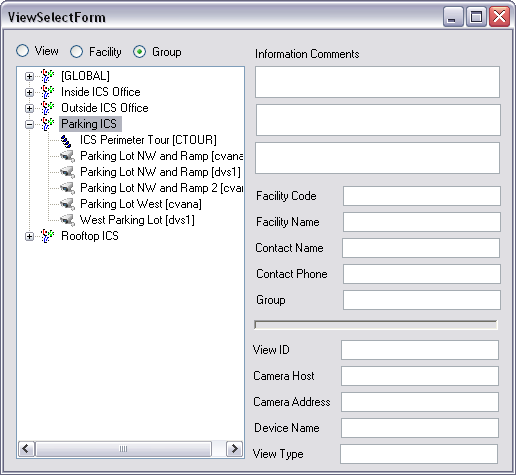

Select View by Group

The Group processing is the same as for Facility with the radio button Group selected.
